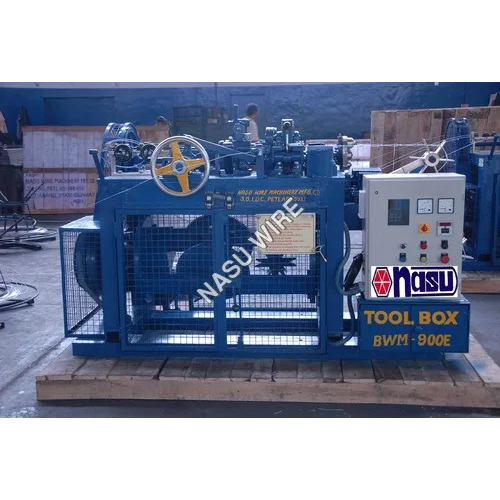

Automatic Barbed Wire Making Machine

Automatic Barbed Wire Making Machine

Being most experienced in this domain, we are catering our customers by manufacturing, exporting and supplying commendable range of Automatic Barbed Wire Making Machine. We offer fully automatic machine to make optimum quality of barbed wires. To manufacture these machines, we procure our materials from trustworthy vendors of the market. Our assortment of Automatic Barbed Wire Making Machine is manufactured under the supervision of our quality experts at each stage of the manufacturing process. We offer our range of machine at economical price.

* AC Variable Speed Drive thats help changing speed of the machine for better production by just turning the speed of the machine.

When you run 16 gauge wire  for more production (approx 15%)

Technical Data:

• Wire Dia. Range : 2.64 - 2.03 mm (12 SWG to 16 SWG)
• Wire Material : G.I. Wire.
• Barb Pitch : 65 - 127 mm (3- 5 inches)
• Power : 7.5 H.P. ( 3.7 kW )
• Estimated Production* : 88 Kg / Hr
• Wire: 12# X 14#
• Barb Spacing: 3 Inch
• Bundle Weight: 40 Kg.
• Drive : All Gear Drives.
• Max. Bundle Weight : 40 Kg.
• Approx. Weight : 1,275 Kg.
• Required Labor : 1 skilled labor.
